Description

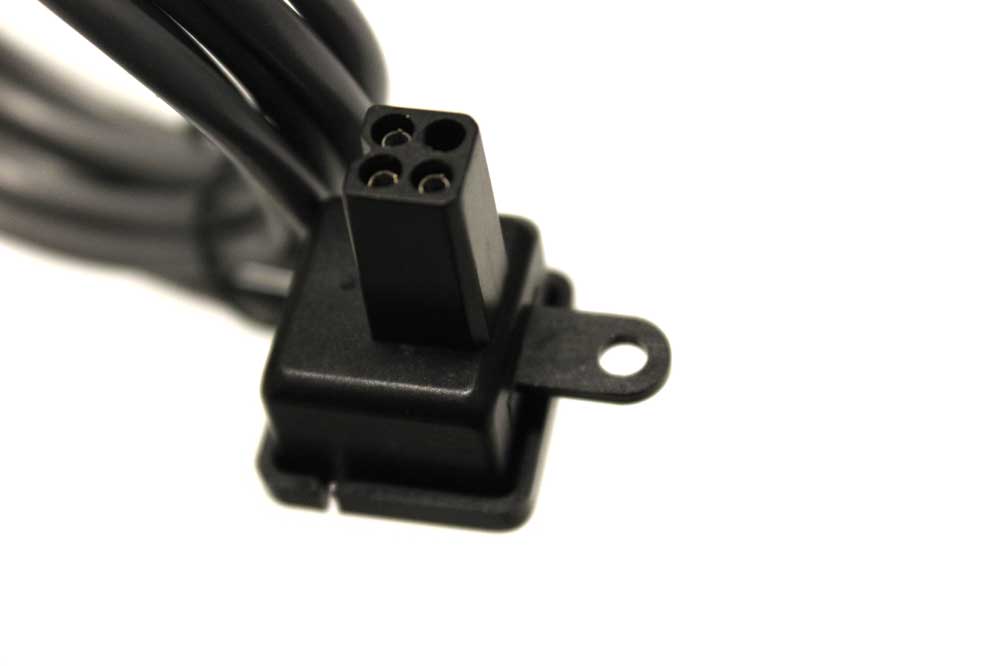

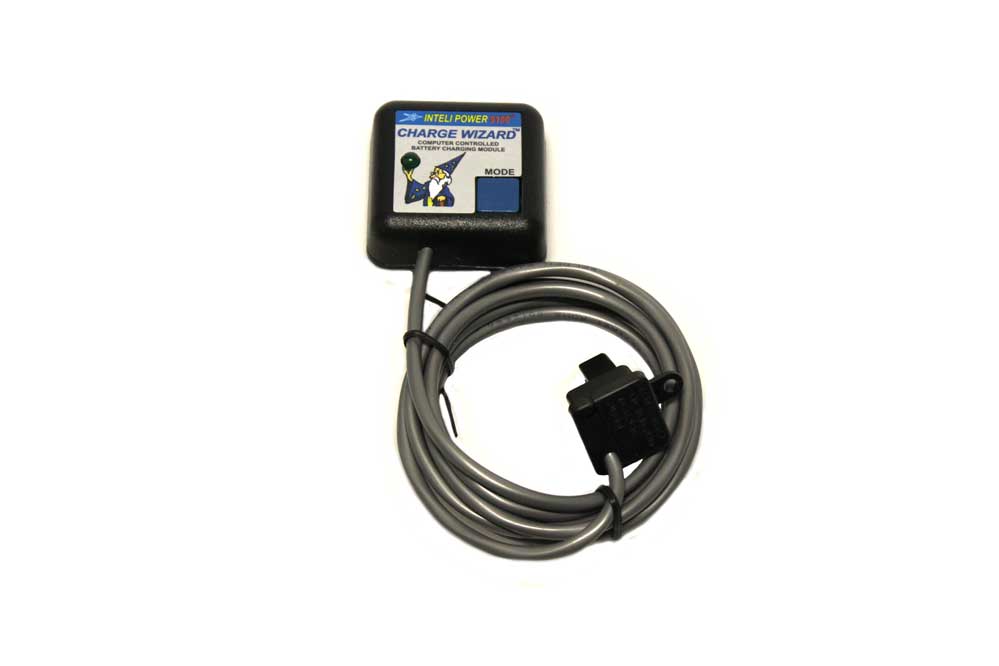

The Charge Wizard is designed to plug into the standard TCMS (Total Charge Management System) port located on the front of all models of the intel-power series converters. The Charge Wizard is a microprocessor-controlled unit that constantly monitors the battery voltage and then selects one of three charging voltages and one of four operating modes to properly recharge or maintain the battery. Charging Modes: 1) Boost Mode- rapid recharge at 14.4-V of operation 2) Normal mode- 13.6-V complete charge 3) Storage Mode- 13.2-V automatically selected after 30 hours non-use 4) Equalizing mode- every 21 hours when the system is operating the Storage mode will automatically increase the charging voltage to 14.4-volts for 15 minutes. This increased voltage mixes up the battery electrolyte and prevents battery stratification and the resulting problems of battery sulfating. This part is used with all converters that do not have built in module.
